ARC-2 Multi-Function 1/10 Scale 70A Brushed ESC with Program Box from Carisma- CIS16115
Carisma’s ARC-2 ESC is a breakthrough in performance and convenience for crawlers and bashers alike!
Dedicated Descent Control
(ESC Mode 4) Descent Control mimics the electronic systems fitted to most modern 4x4's. It balances braking force against the RPM of the throttle allowing the vehicle to make a controlled descent down even the steepest of inclines using minimal throttle and the rigs own weight. You could call it 'Gravity Assist' as the rig slowly descends under full control. In use, the Descent Control Force lessens as throttle is increased and increases as throttle application is reduced. This feature is also especially useful when ascending up an incline. At zero throttle the ARC-1 holds the rig in position at full brake, acting like a hand brake. This then allows the driver time to plan their next move and pick the perfect line. As the throttle increases and the rig climbs, the brake effect lessens. NOTE: In Crawler Mode, Descent Control is active as standard. But the ESC still has instant reverse, an important feature in Rock Crawling to help stop a rig toppling backwards on its axis on a very steep climb using a blip of reverse.
Smart Brake
(ESC Modes 1 and 3) For non-Crawler applications, when the vehicle goes from Forward to Reverse or Reverse to Forward quickly, the ESC will go into brake mode first, instead of reversing the motor immediately. This is to protect the drive line in certain vehicles from undue shocks and stress. NOTE: The ESC will remain in brake mode unless the throttle is returned to the NEUTRAL position for a short moment. Smart brake is only activated in Forward/Reverse mode and Beginner mode. It is not active in Crawler Mode.
QR Code 'ON' ESC

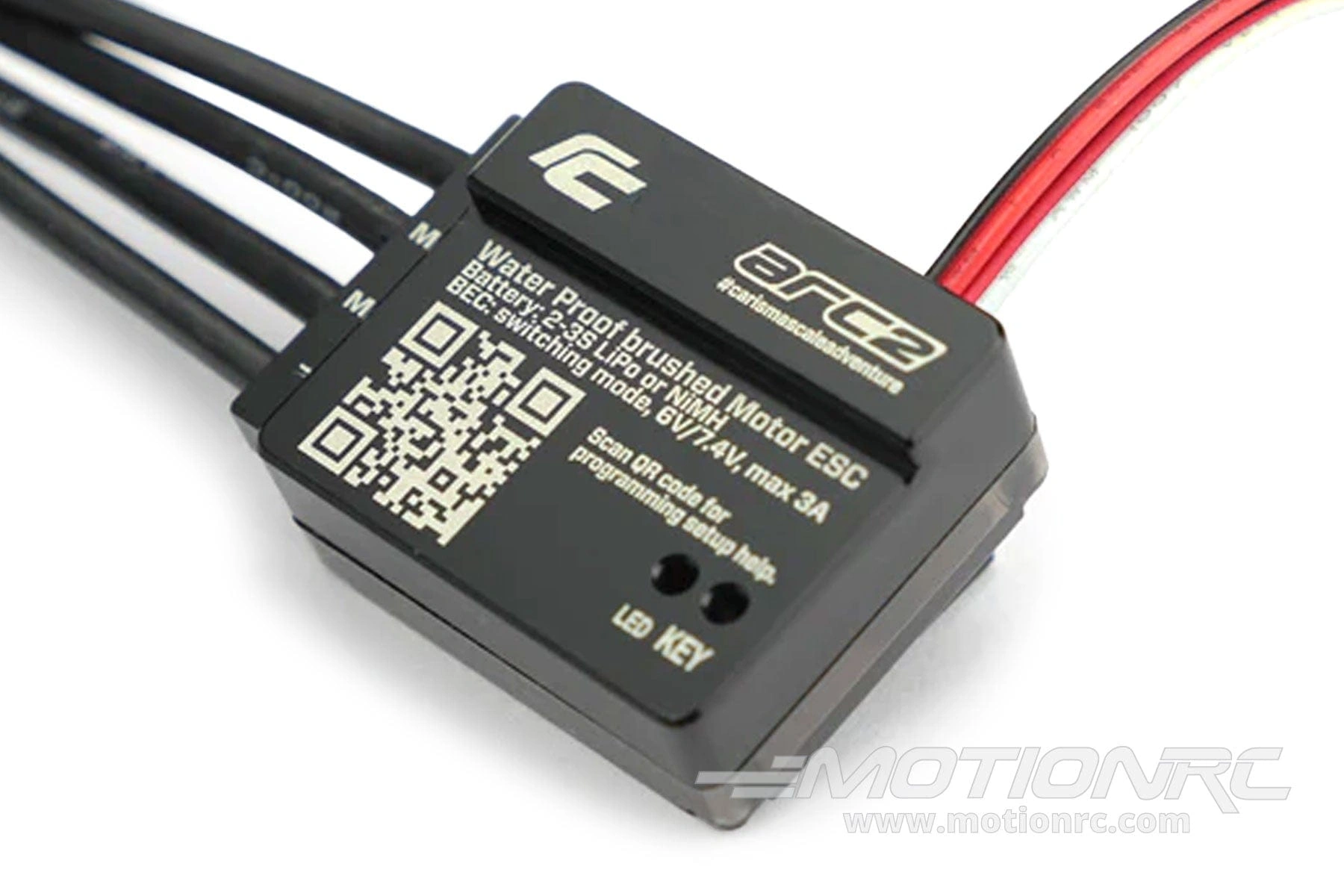

To simplify setup, there is a QR Code sticker on the ESC, allowing any smartphone or tablet (with camera) owner to use a QR Code Scanner application to first scan the QR Code, and then be transported to the products official page on our website. All the latest info, Programming Charts and Manuals can then be viewed or downloaded for use.
Features:
- CNC Alum with matte black anodized casing for maximum heat dissipation
- Switch Mode BEC: Output voltage: 6V/7.4V (Programmable), Max Output Current: 3A
- Waterproof and Dust-proof, suitable for all weather running in on- or off-road vehicles
- 2 or 3S LiPo or 5-9 cell NiMH compatible

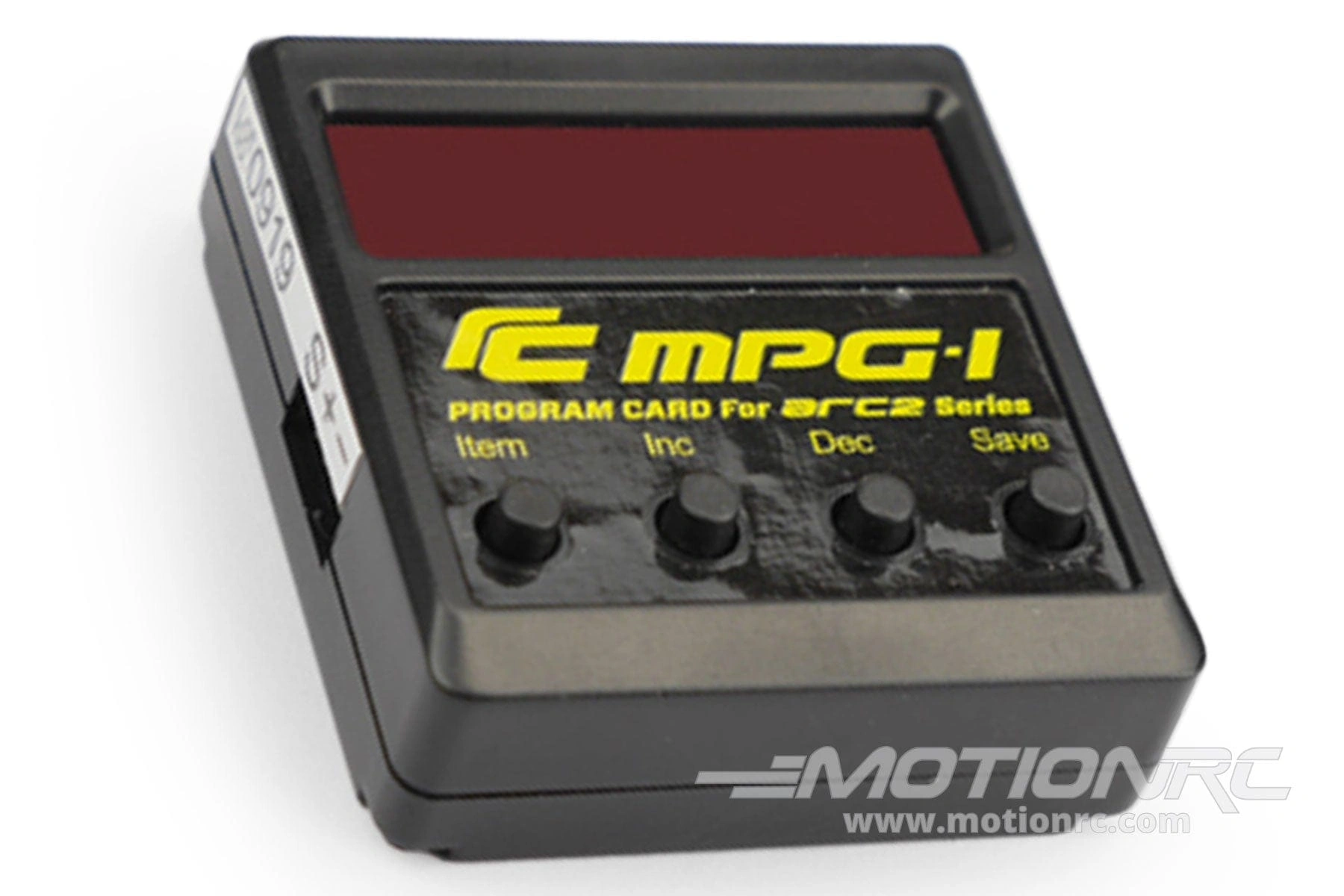

- 21 Fully programmable parameter items, easy setup using LED program card
- On power descent brake for precision motion control and downhill finesse
- Adjustable PWM frequency: 1K/2K/4K/8K/16K/32K
- Low voltage cut-off (LVC) protection for LiPo cells
- Anti-Lock Brake (ABS) for on road cars
- Over-heating/thermal protection
- Fully programmable drag brake
- Throttle signal loss protection
- Low RPM/ stall protection
- Over voltage protection

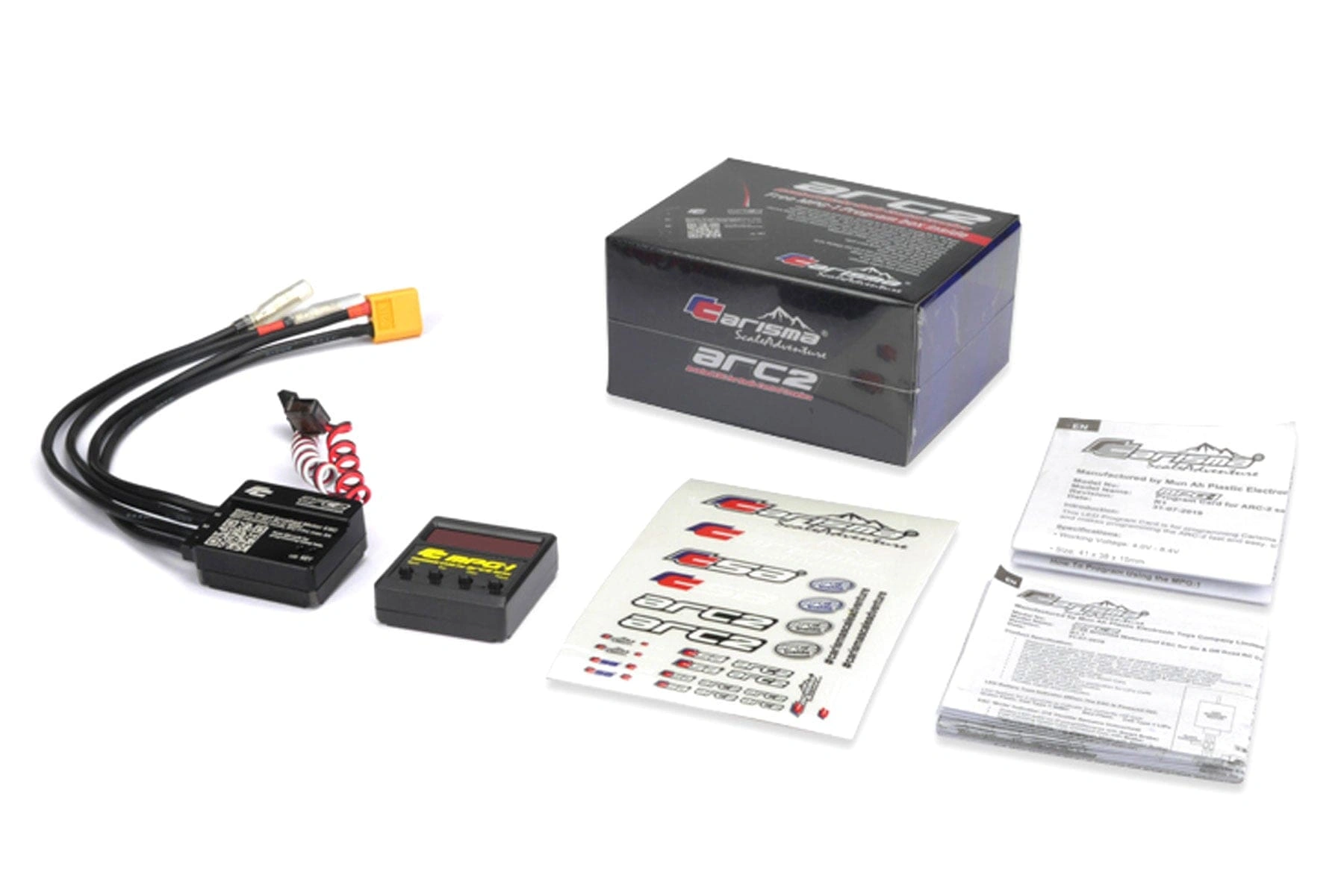

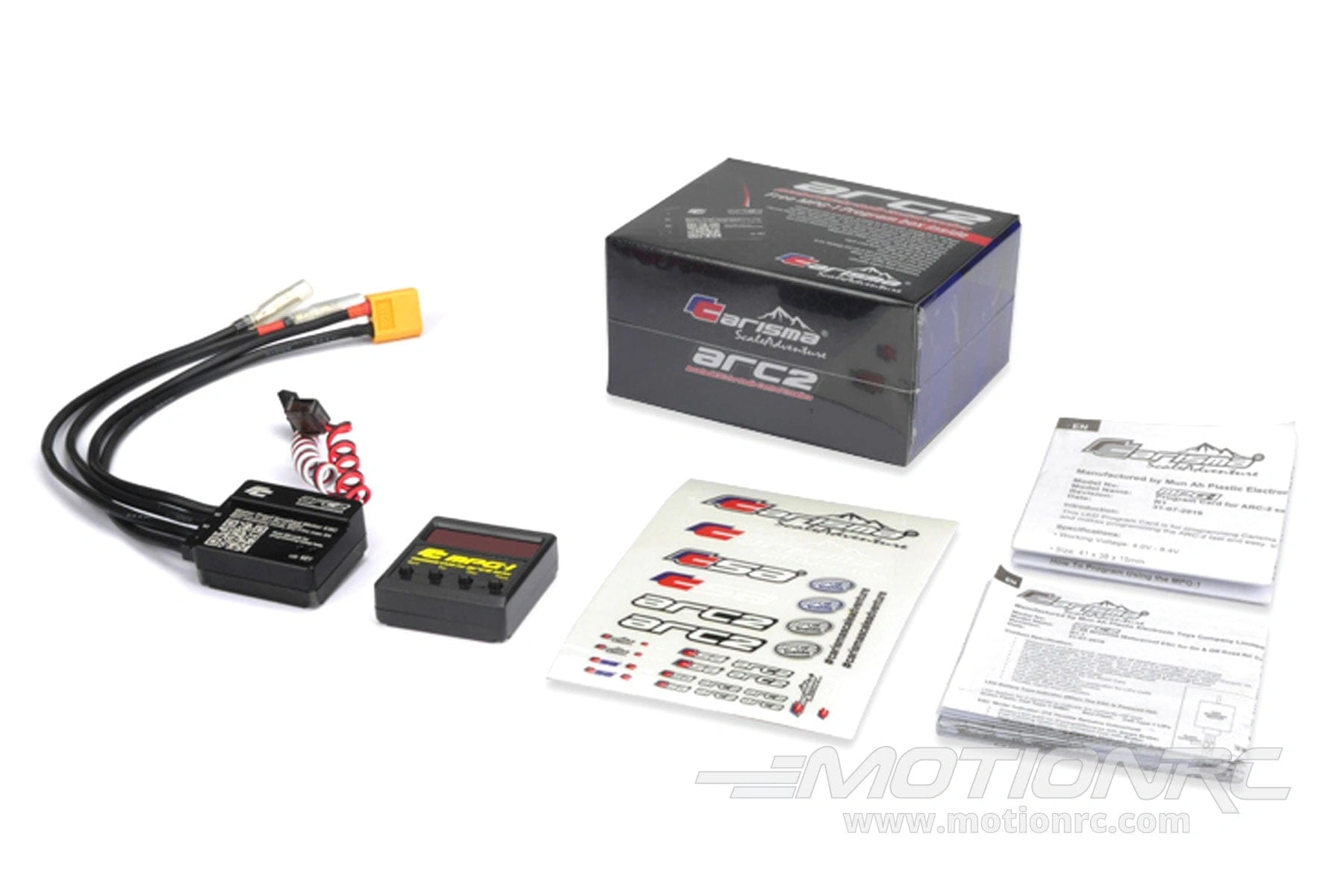

Includes:

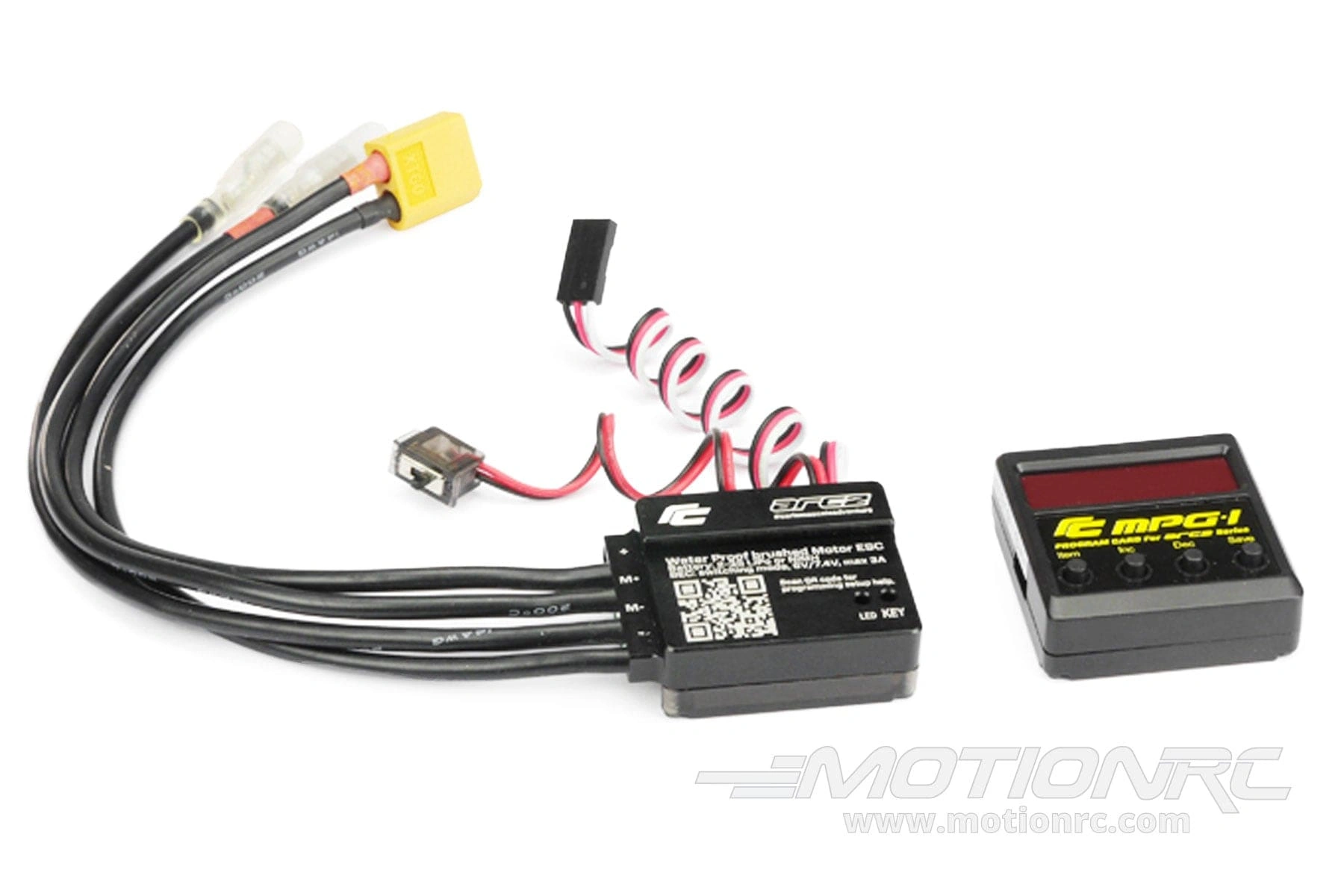

- Carisma ARC-2 Multi-Function 1/10 Scale 70A Brushed ESC with Program Box
